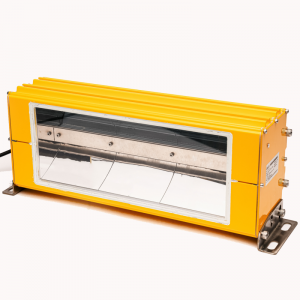

High intensity LED aviation obstruction light

Short Description:

It is PC and steel omnidirectional White LED aviation obstruction light. It is used to remind pilots that there are obstacles, and to pay attention in advance to avoid hitting obstacles.

Send email to us

Product Detail

Product Tags

Application

Widely used in various fields of the Air Force, civilian airports and obstacle free airspace, helipads, iron tower, chimney, ports, wind power plants, bridge and city high-rise buildings where require aviation warning.

Usually used above 150m buildings, could use alone, also could use with Medium OBL type B and Low intensity OBL type B together.

Production Description

Compliance

- ICAO Annex 14, Volume I, Eighth Edition, dated July 2018

- FAA 150/5345-43H L-856 L-857

Key Feature

● The house of the light adopts high quality aluminium alloy, the light emitting surface use tempered glass, the structure is high strength, resistance to corrosion.

● Use the special optical reflector design, the visual range further, angle more accurate, no light pollution.

● Light source adopts import high quality LED, lifespan up to 100,000 hours, low power consumption, energy efficiency and environment protection.

● Based on the single chip computer control, automatic identification sync signal, do not distinguish the main light and auxiliary light, and also could be controlled by the controller.

● Same power supply voltage with synchronous signal, integrate in power supply cable, eliminate the damage by error installation caused.

● Used the photosensitive probe fit for the natural light spectrum curve, automatic control light intensity level.

● The circuit of the light has surge protection, so that the light is suitable for a harsh environment.

● Integral structure, protection level of Ip65.

● GPS synchronizing function is available.

Aircraft Warning Sphere Installation diagram

CM-17

CM-18

Parameter

Light Characteristics		CM-17	CM-18
Light source	LED
Color	White
Lifespan of LED	100,000hours (decay<20%)
Light intensity		2000cd(±25%) (Background Luminance ) 20000cd(±25%) (Background Luminance50～500Lux) 100000cd(±25%) (Background Luminance＞500Lux)	2000cd(±25%) (Background Luminance ) 20000cd(±25%) (Background Luminance50～500Lux) 200000cd(±25%) (Background Luminance＞500Lux)
Flash frequency		Flash
Vertical Angle		90° horizontal beam angle 3-7° vertical beam spread
Electrical Characteristics
Operating Mode	110V to 240V AC; 24V DC, 48V DC available
Power Consumption		15W	25W
Physical Characteristics
Body/Base Material	Casting Aluminum, aviation yellow painted
Lens Material	Polycarbonate UV stabilized,good impact resistance
Overall Dimension(mm)		510mm×204mm×134mm	654mm×204mm×134mm
Mounting Dimension(mm)		485mm×70mm×4-M10	629mm×60mm×4-M10
Weight(kg)		9.5KG	11.9KG
Environmental Factors
Ingress Grade		IP66
Temperature Range		-55℃ to 55℃
Wind Speed		80m/s
Quality Assurance		ISO9001:2015

Ordering Codes

Main P/N	Color	Power	NVG Compatible	Options
CM-17	[Blank]: White	AC:110VAC-240VAC	[Blank]: only White LEDS	P: Photocell
CM-18		DC1:12VDC	NVG: only IR LEDs	D: Dry Contact (connect BMS)
		DC2:24VDC	RED-NVG: dual White/IR LEDs	G: GPS
		DC3:48VDC
