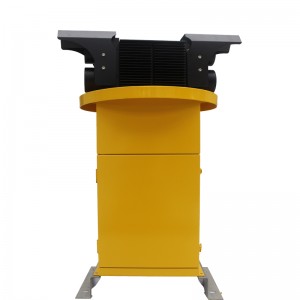

CM-HT12-XZ-3 Heliport Rotation Beacon

Short Description:

The Heliport Rotating Beacon is used primarily for night operations at heliports as an identification and location marker.

Product Detail

Product Tags


Production Description

ICAO Airport Services Manual, Part 9, Airport Maintenance Practices, and FAA AC150 / 5345-26, "Visual Maintenance of Airport Visual Aids", are the highest standards for site installation and maintenance.

The manual is extremely important, construction workers must be read carefully before constructing. In the correct understanding of all the words, in strict accordance with the instructions provided by the method of construction, to ensure safe and correct product will be installed in place.

Airport daily maintenance works should be in strict accordance with the relevant provisions of the method of routine maintenance work to ensure that lamps are in the best working condition.

Relevant personnel must strictly comply with safety guidelines. Non-specially trained personnel should not touch lamps and equipment. In any case, Opening Electrical Power work should be avoided. Construction workers or maintenance person should be aware of the relevant emergency knowledge to prevent emergencies.


- ICAO Annex 14, Volume I, Eighth Edition, dated July 2018- FAA AC 150 / 5345-12

Main interface

● Light intensity and light color meet the requirements.

● Sophisticated optical control, light utilization, high brightness, outstanding optical performance.

● Lamps shape is handsome, good thermal performance, well-designed.

● The lamp uses a split structure, reducing impurities and moisture into the lamp,improving the service life of lamp optics, reducing the number of maintenance operations.

● The main body of the lamp is made of aluminum alloy.The fastener is made of stainless steel, and the anti-corrosion performance is good.

● Adopts high-precision machine tool processing, ensuring a full range of lamps quality and accuracy.

Product Structure



Light  Characteristics
Operating voltage AC220V (Other available)
Power consumption 3*150W
Light Source Halogen
Light Source Lifespan 100,000hours
Emitting Color White,Green,Yellow
Flash 12 rev/min, 36 times per minute
Ingress Protection IP65
Altitude ≤2500m
Weight 89kg
